Advanced counting

FootfallCam 3D Pro2

High-accuracy 3D stereo sensor for visitor counting in demanding high-traffic environments.

Explore features
≥98%
Up to 98% accuracy
Patented 3D stereo technology reliably separates individuals even in crowded conditions.
IP65
IP65 rated
Suitable for entrances to shopping centres, airports, stadiums and industrial environments.
10m
Wi-Fi & PoE
Flexible installation without special cabling. Plug-and-play integration with the Sauron platform.
GDPR
GDPR compliant
The device processes only anonymous counts – no images or video footage is ever stored.

Key features

FootfallCam 3D Pro2 was designed for high-traffic environments where standard sensors fall short.

3D stereo detection

Two lenses create a depth map, reliably distinguishing heads from hands, bags and trolleys. Works in all lighting conditions.

Bi-directional counting

Accurately detects entries and exits simultaneously, even when multiple people pass through at once.

Real-time data

Data is streamed directly to the Sauron platform and visible live through the web dashboard.

Wide field of view

Covers entrances up to 10 metres wide with a single sensor. Suitable for revolving doors, terminal gates and industrial passages.

Easy installation

Ceiling or door-frame mounting, powered via PoE or USB-C. Configuration takes under 15 minutes.

Redundant storage

Built-in local memory ensures data capture even when the internet connection is unavailable.

Technical specifications

An industrially designed sensor for demanding environments.

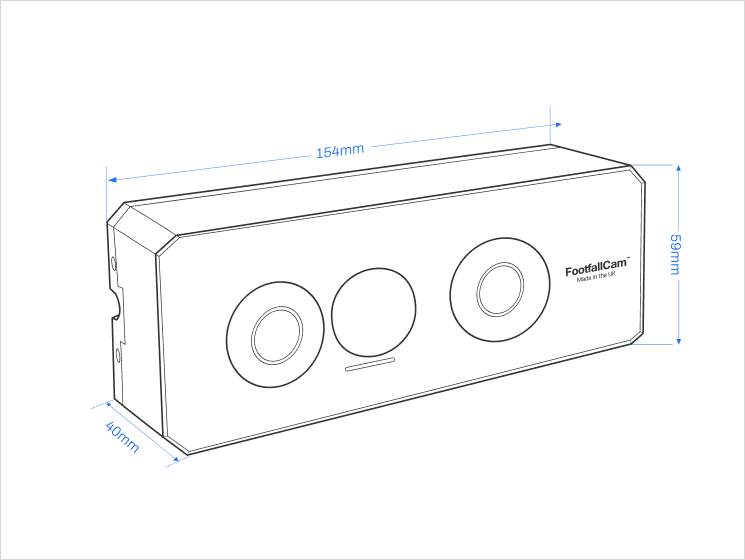

FootfallCam 3D Pro2 side view
FootfallCam 3D Pro2
www.footfallcam.com →
Sensor 3D stereo camera, 2× 1.3 MP
Field of view 180° horizontal / 60° vertical
Mounting height 2.5 – 5.0 m
Entrance coverage up to 10 m
Accuracy ≥ 98% (under controlled conditions)
Power PoE 802.3af / USB-C 5V
Connectivity Wi-Fi 802.11ac, Ethernet (RJ45)
Protection IP65
Operating temperature −10 °C to +50 °C
Dimensions 190 × 80 × 55 mm
Weight 340 g
Certifications CE, FCC, RoHS, GDPR compliant

When to choose Pro?

Comparison with the standard Sauron sensor.

Feature Sauron Standard Sauron Pro
Accuracy ~95% ≥ 98%
Technology 2D video analytics 3D stereo sensor
Crowded / high traffic Limited Excellent
Entrance width up to 4 m up to 10 m
IP rating IP40 IP65
Local storage – ✓
Ideal for Small shops, offices Shopping centres, airports, stadiums
